What Is LCD Color Filter?.
Demystifying LCD Color Filters: The Key to Vibrant Visuals

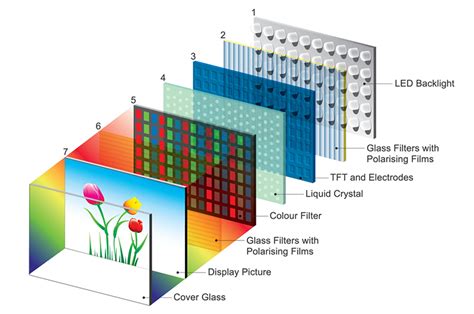

In the realm of technology, color plays a crucial role in enhancing our visual experiences. From the captivating landscapes displayed on our smartphones to the vibrant hues of our favorite television shows, color is an integral component of our digital interactions. However, the creation of these vibrant images is not as straightforward as it may seem. A critical player in this process is the often-overlooked LCD color filter, a thin layer of material that sits directly behind the liquid crystal display (LCD) panel.
The Role of the LCD Color Filter: A Chromatic Canvas

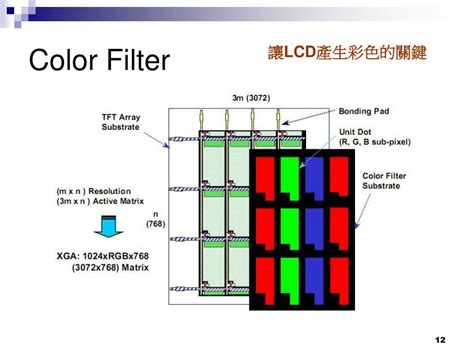

The LCD color filter is a crucial component of LCD displays, playing a pivotal role in transforming the monochromatic light emitted from the backlight into the colorful images we see. It accomplishes this by selectively allowing specific wavelengths of light to pass through, while filtering out others. This filtering mechanism is achieved through the use of microscopic patterns of red, green, and blue (RGB) pigments embedded within the filter material.
The RGB Pigments: A Symphony of Colors
The RGB pigments are the building blocks of the color filter's chromatic magic. As light from the backlight passes through the filter, each RGB pigment selectively absorbs specific wavelengths of light, allowing only those corresponding to its color to pass through. This process is analogous to a painter's palette, where each pigment contributes its unique shade to the overall composition.
The Black Matrix: Preventing Color Bleed
To further enhance the color fidelity and sharpness of the displayed images, an intricate grid pattern of black material, known as the black matrix, is placed between the RGB pigments. This matrix serves as a barrier, preventing light from neighboring pixels from bleeding into adjacent areas, ensuring that each pixel appears as a distinct unit of color.
The Manufacturing Process: A Delicate Dance of Precision
The manufacturing of LCD color filters is a complex and precision-driven process. The thin glass substrate, upon which the RGB pigments and black matrix will be deposited, is first thoroughly cleaned and prepared. Next, a thin layer of photosensitive material is applied to the substrate, creating a uniform surface for the color pattern to be formed.
Using a photolithographic process, a patterned mask, containing the precise layout of the RGB pigments, is exposed to ultraviolet light. When the exposed photoresist is developed, the pattern is hardened, leaving behind the desired pigment patterns on the substrate. Finally, the black matrix material is applied and patterned using similar techniques, ensuring precise alignment with the RGB pigments.
Evolution of LCD Color Filters: Pushing the Limits of Color Reproduction
Over the years, LCD color filters have undergone significant advancements, driven by the continuous quest for improved color representation and image quality. Advancements in pigment technology have enabled the creation of smaller, more densely packed pixels, leading to sharper images and finer details. Additionally, the development of advanced manufacturing techniques has resulted in more precise color reproduction and reduced color bleeding, further enhancing the visual experience.
Future Directions: Evolving with Display Technologies
As display technologies continue to evolve, LCD color filters are expected to play an even more critical role in shaping the visual experiences we encounter. With the development of OLED and microLED displays, which offer superior contrast and wider color gamuts, the demand for advanced color filters is expected to grow.
Conclusion: A Vital Component of Visual Delight
The LCD color filter, though often overlooked, is a fundamental component of the visual experience we enjoy on our smartphones, televisions, and other digital devices. Its ability to transform monochromatic light into vibrant, colorful images is a testament to the ingenuity of engineering and the power of technology to enhance our perception of the world around us. As display technologies continue to push the boundaries of visual fidelity, the LCD color filter will remain an essential player in shaping the future of our digital visual experiences.
.
