What Is A Shoring Plate?.
Conquering the Cave-In: A Deep Dive into Shoring Plates
Imagine a world where digging a ditch doesn't feel like tempting fate with a collapsing wall of dirt. A world where construction crews can confidently delve into the earth, knowing their safety net is as strong as it is versatile. This, my friends, is the world of shoring plates.
So, what exactly is a shoring plate?
In its simplest form, a shoring plate is a large, flat piece of steel used to temporarily support the sides of an excavation. These unsung heroes of the construction world come in various shapes and sizes, from single rectangular plates to interlocking panels that form continuous walls. Their thickness, typically ranging from 1/2 inch to 2 inches, is carefully chosen to bear the weight of the surrounding earth without buckling.
But shoring plates are much more than just beefy metal sheets. They're the silent guardians of countless projects, from simple trench work to complex underground excavations. Think of them as the bodyguards of the construction site, keeping the earth at bay and ensuring everyone can work safely and efficiently.
How do these metal marvels work their magic?

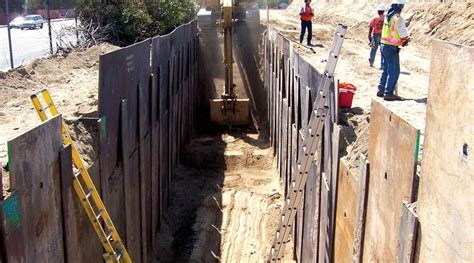

Shoring plates are typically installed in a series, creating a wall that extends from the bottom of the excavation to ground level. The plates are then braced against the undisturbed earth on the opposite side of the trench. This creates a kind of "sandwich," with the earth sandwiched between the shoring wall and the undisturbed soil. The pressure of the earth is then transferred through the plates and braces to the stable ground, preventing the trench walls from caving in.
But wait, there's more!
Shoring plates aren't just a one-trick pony. They offer a multitude of benefits that make them the go-to choice for a variety of excavation needs:
- Strength and stability: Made from high-quality steel, shoring plates can withstand immense loads of earth, making them ideal for deep excavations and unstable soil conditions.
- Versatility: Available in various sizes and configurations, shoring plates can be adapted to fit any excavation shape and size.
- Speed and efficiency: Prefabricated panels and easy-to-assemble systems allow for quick installation and removal, minimizing downtime and project costs.
- Safety: By preventing cave-ins and protecting workers, shoring plates are a crucial safety measure on any excavation site.
- Reusable: Unlike some other shoring methods, shoring plates can be reused on multiple projects, making them a cost-effective and sustainable choice.
Now, let's delve into the different types of shoring plates:
- Sheet pile shoring: These interlocking panels form a continuous wall, ideal for deep excavations and tight spaces.
- Soldier pile and lagging: This system uses vertical steel beams (soldier piles) driven into the ground with horizontal wood or steel planks (lagging) placed between them to create the wall.
- Beam and plate shoring: This method combines horizontal beams with steel plates to create a strong and flexible shoring system.
Choosing the right shoring plate for the job:
Selecting the appropriate shoring plate system depends on various factors, including:
- Depth of the excavation
- Soil conditions
- Lateral loads
- Space constraints
- Budget
Consulting with a qualified engineer is crucial to ensure the chosen shoring system can safely handle the specific project requirements.
In conclusion, shoring plates are more than just metal slabs. They're the silent heroes of the construction world, safeguarding workers, ensuring project stability, and allowing us to conquer the earth with confidence. So, the next time you see an excavation project, take a moment to appreciate the unsung heroes holding it all together – the mighty shoring plates.
Remember: Safety first! Always follow proper safety protocols and consult with qualified professionals when working with shoring systems.
With their strength, versatility, and safety benefits, shoring plates are truly the foundation of a successful excavation.
I hope this article has given you a comprehensive understanding of the world of shoring plates. If you have any further questions, feel free to ask!
.
